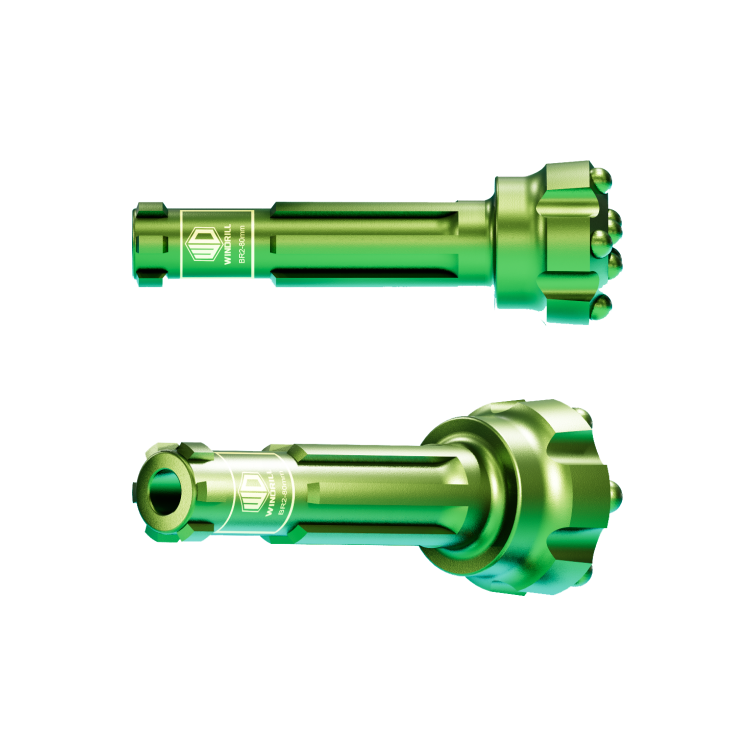

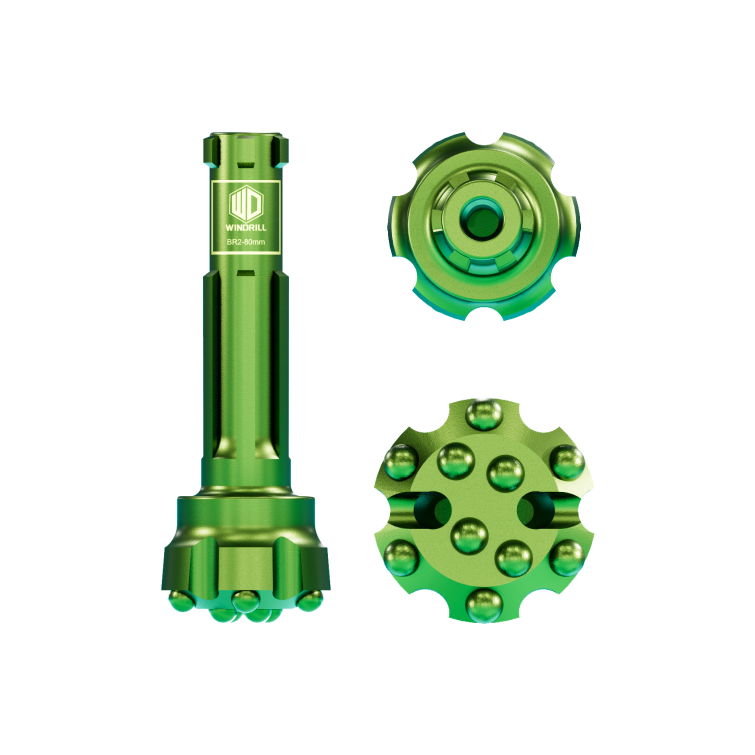

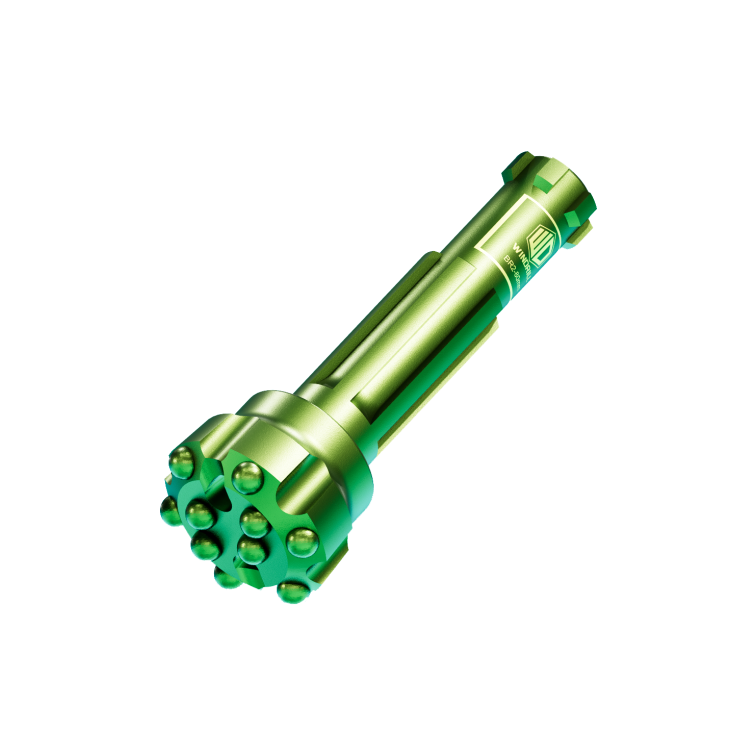

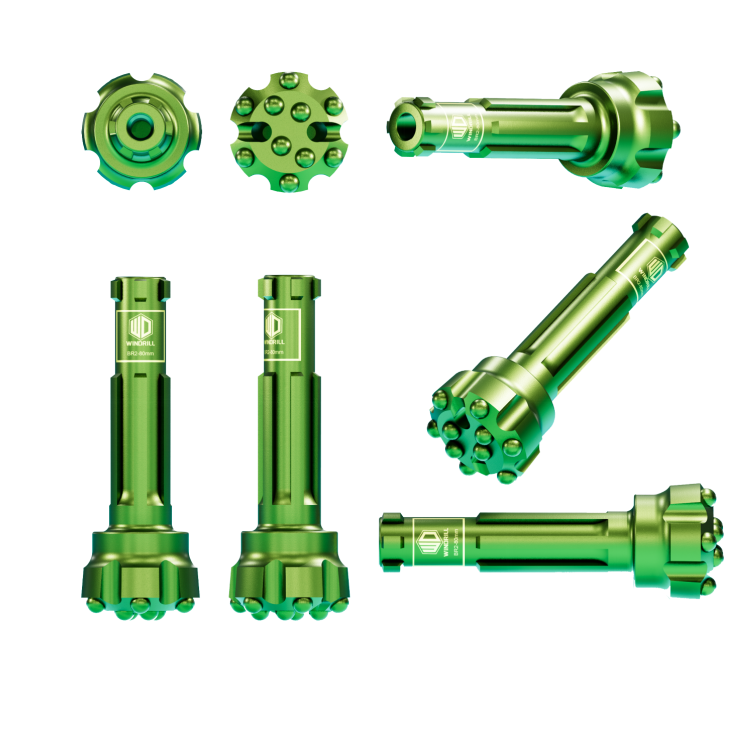

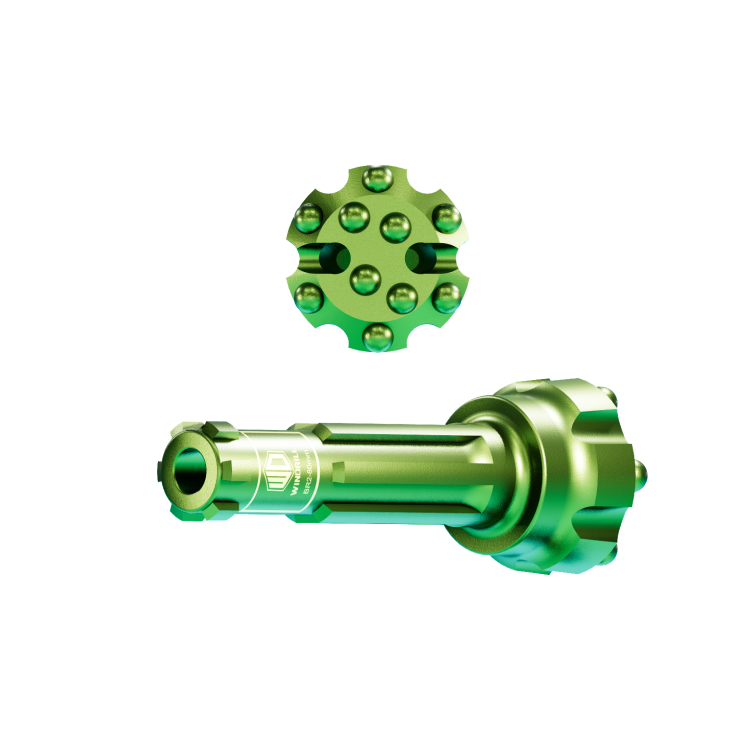

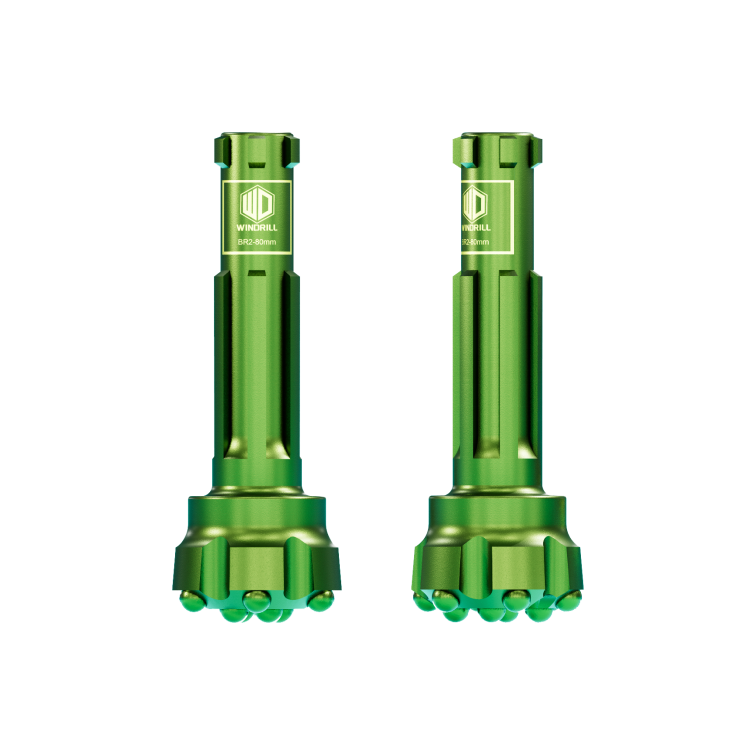

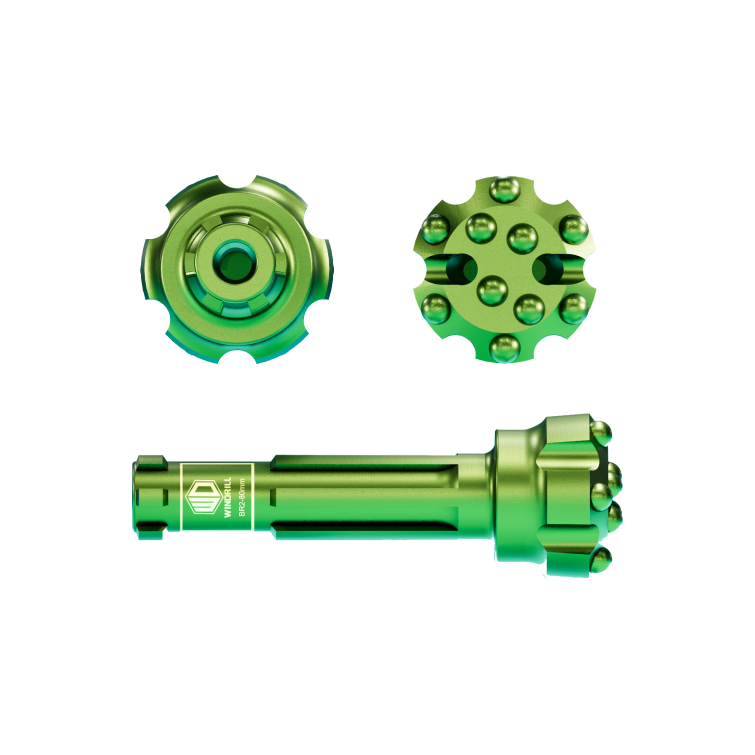

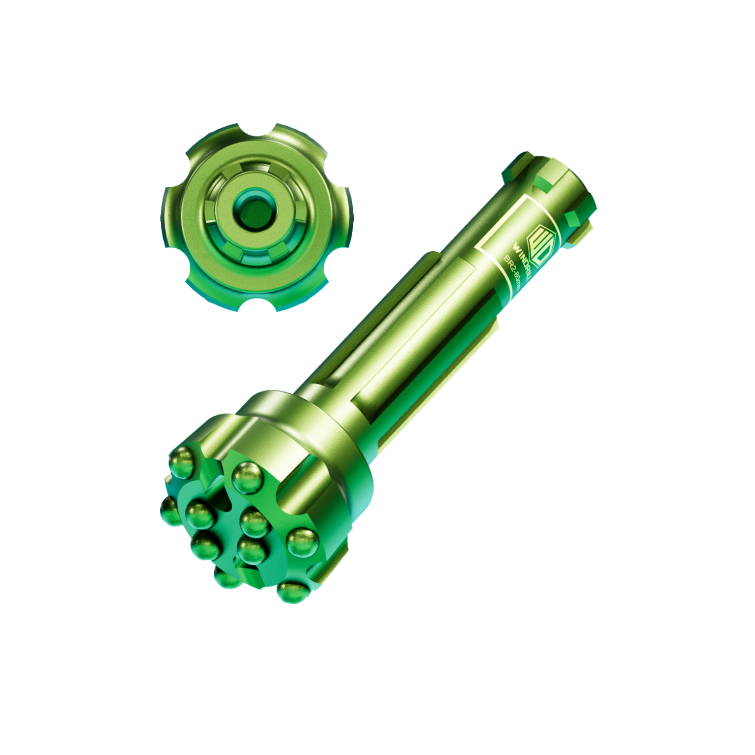

BR2-80mm BBS012FF080 DTH valved hammer and bits 93501344 COP20 button bits
Bit shank: BR2
Brand: Win Drill
Origine: China
Bit diameter: 70-95mm
Insert Button Shape: Spherical, ballistic, parabolic
Bit Faces: flat face, concave, convex
Packaging: Ply-wood box
Delivery Time: 5-30 days
Sample Order: Yes
OEM Service: Yes
Model: BR2-80mm
The BR2 is valved type DTH hammers designed for high performance at low operating air pressures.
It’s simplicity of design, ease of service and low air consumption are all factors which combine to make these hammers robust and reliable drilling tools.
BR2 hammer with standard box backheads RD50. However alternative backhead options are available on request
Advantages:
– Advanced hammer designs with high power and air efficiency increases productivity.
-Tailored product offering covers all your applications and conditions.
-Easy service and maintenance designs reduces machine downtime.
-Generic and proprietary shank options give you flexibility and reliability.
Win Drill BR2 DTH buttons bits parameter
| Bit Diameter (mm) |
Part No. | No. x Button diameter (mm) | Weight (Kg) |
|||
| Gauge buttons |
Front Buttons | |||||
| Flat | Convex | Concave | ||||
| Φ76 | BR2-76FF6 | 6×Φ12 | 5×Φ10 | / | / | 2.3 |
| Φ76 | BR2-76CV6 | 6×Φ13 | 2×Φ10 | 2×Φ11 | / | 2.3 |
| Φ80 | BR2-80CV6 | 6×Φ13 | 2×Φ10 | 3×Φ11 | / | 2.4 |
| Φ90 | BR2-90CV6 | 6×Φ13 | 2×Φ11 | 4×Φ11 | / | 2.6 |
| Φ90 | BR2-90FF6 | 6×Φ13 | 6×Φ10 | / | / | 2.6 |
| Φ95 | BR2-95CC8 | 8×Φ12 | 4×Φ12 | / | / | 2.8 |
