Win Drill CIR110 Series: Low Air Pressure DTH Button Bit for Efficient Water Well and Rock Drilling
Bit shank: CIR110
Brand: Win Drill
Origine: China
Bit diameter: 110-150mm
Insert Button Shape: Spherical, ballistic, parabolic
Bit Faces: flat face, concave, convex
Packaging: Ply-wood box
Delivery Time: 5-30 days
Sample Order: Yes
OEM Service: Yes

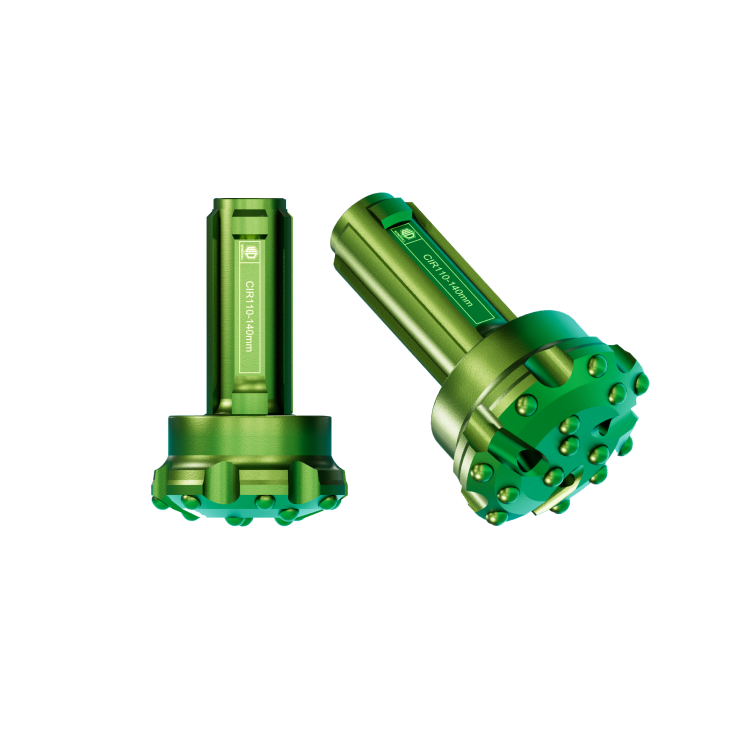

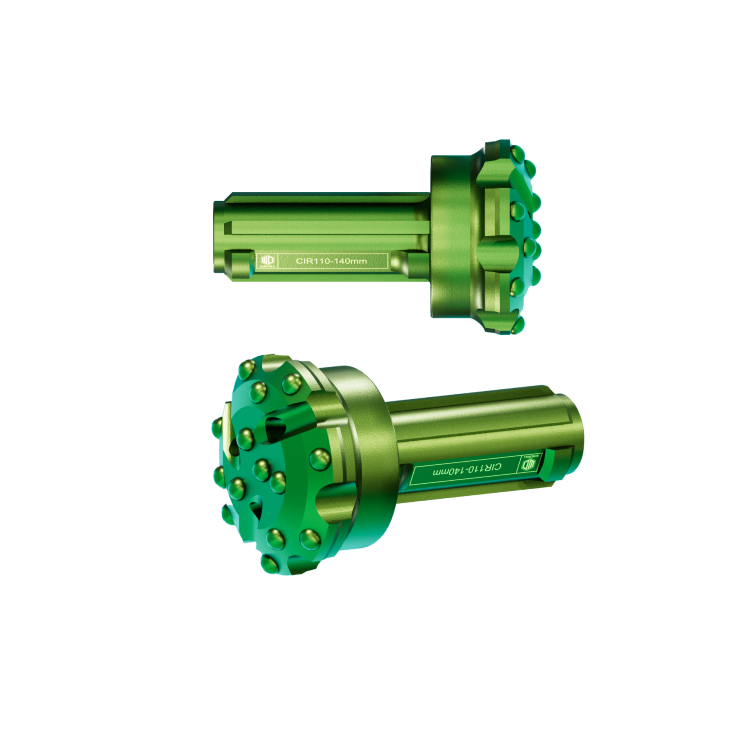

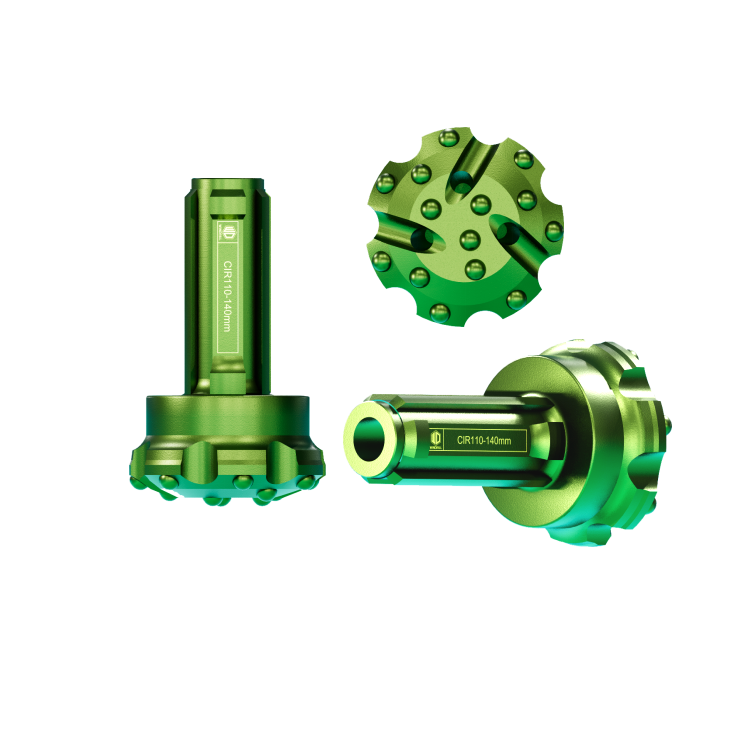

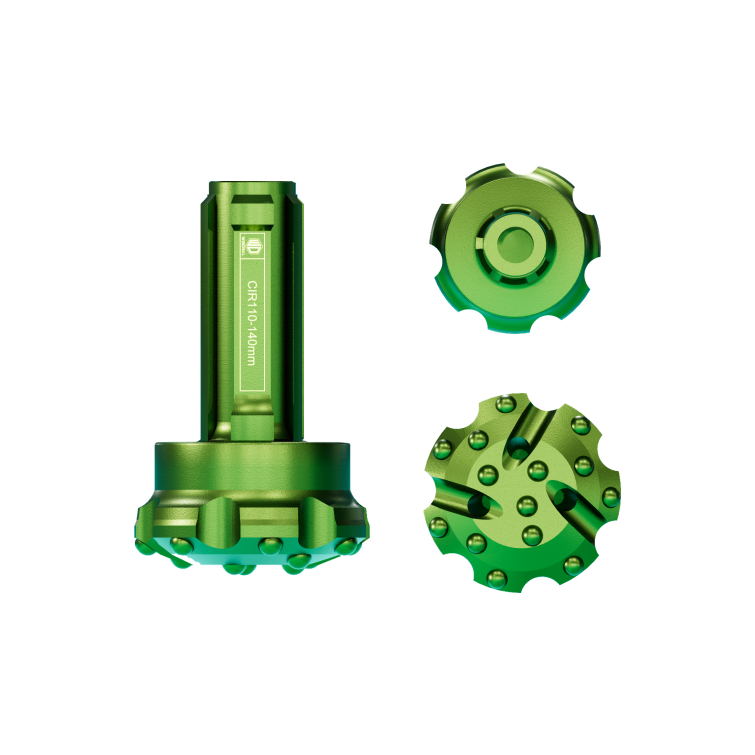

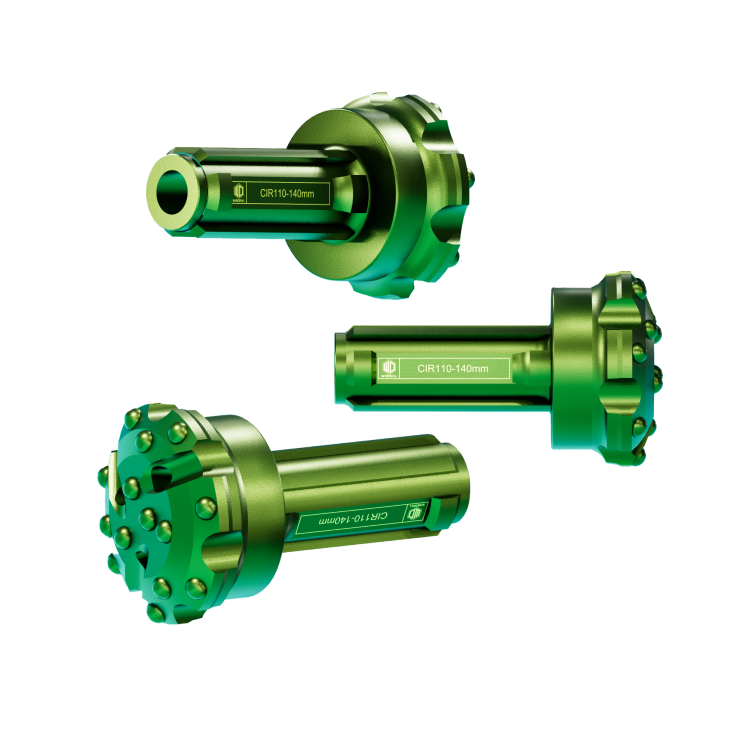

Model: CIR110-140mm
Win Drill CIR110 Series DTH Button Bit: Unleashing Efficiency in Low Air Pressure Drilling
The Win Drill CIR110 Series presents a steel valve type hammer designed to excel in high-performance drilling at low operating air pressure. With a focus on strong energy impact and reduced energy consumption in rock crushing, the CIR110 Series ensures reliable and efficient drilling operations.
Key Features:
- Steel Valve Design: The patented steel valve increases work efficiency by at least 20%.
- Low Air Pressure Performance: Engineered for optimal performance at 5-7 Bar air pressure.
- Optimized Energy Output: Maximizes energy output while minimizing service requirements.
- Central Air Exhaust: Exhibits excellent performance in central air exhaust and cutting discharge, reducing repeated rock crushing.
- Heat-Treated Components: Critical internal components are heat treated under strict control, maximizing tool longevity.
Applications:
- Water Well
- Mining
- Construction
- Quarry
Win Drill CIR110 Series DTH Button Bit Specifications
| Specification | Value |
| Warranty | 3 months |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Construction Works, Energy & Mining |
| Weight (KG) | 2.5 |
| Showroom Location | None |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Place of Origin | Fujian, China |
| Condition | New |
| Brand Name | Win Drill |
| Type | Button bit |
| Machine Type | Drilling Tool |
| Material | Stainless steel |
| Processing Type | Forging |
| Use | Well Drilling |
| Working Pressure | 5-7 Bar |
| Bit Shank | CIR |
| Top Sub Thread | API 2-3/8″ REG BOX |
| Air Consumption | 6-12 (M3/min) |
| Button Shape | Spherical, Ballistic, Dome |
| Application | Water Well, Mining, Construction, Quarry |
| Bit Face | Drop Center Bit, Flat Face Bit, Convex Face Bit, Concave Face Bit |
| Process | Forging + Machining + Surface Treatment |
| Advantage | Cost-effective |
| Color | Green (Customer Request) |
5-7 Bar Low air pressure CIR110 DTH hammer for water well
| Length | Weight | External diameter | Bit shank | Hole range | Connection thread |
| (without bit) | (Without bit) | ||||
| 840mm | 33kg | Φ98mm | CIR110 | Φ110-Φ150mm | API 2-3/8″ REG |
| BOX | |||||
| Working pressure | Impact rate at 0.5Mpa | Recommended rotation speed | Air consumption | ||
| 0.5Mpa | 1Mpa | ||||
| 0.5-1Mpa | 14Hz | 25-40r/min | 7m³/min | 12m³/min | |
FAQ about Win Drill DTH drill bit CIR110
The CIR110 Series is optimized for low air pressure (5-7 Bar) and features a patented steel valve design for efficient water well drilling.
The CIR110 Series is specifically designed for water well drilling, offering reliability and efficiency in this application.
Yes, the CIR110 Series is versatile and can drill holes within the range of Φ110-Φ150mm, accommodating diverse project requirements.
